Overview of the Midmark M11 UltraClave

The Midmark M11 UltraClave is a tabletop steam sterilizer with a large chamber optimizing instrument turnover. It reduces cycle times and simplifies installation. Safety features prevent steam burns during door operation. Ideal for busy clinical settings requiring reliable daily steam sterilization performance. Supports wrapped/unwrapped loads.

Device Purpose and Clinical Applications

The Midmark M11 UltraClave is designed as a self‑contained steam sterilizer for ambulatory surgery centers, dental practices, veterinary clinics, and hospital procedure rooms. Its primary purpose is to provide rapid, reliable sterilization of reusable medical instruments, trays, and cassettes while maintaining compliance with CDC and AAMI standards. The unit’s large chamber accommodates high‑volume loads, allowing clinicians to process wrapped instruments, unwrapped trays, and specialty items such as endoscopes in a single cycle.

Key clinical applications include:

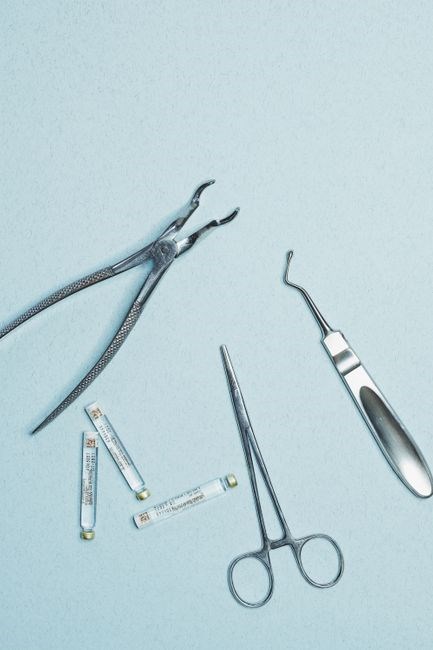

• Surgical instrument processing: scalpels, forceps, scissors, and orthopedic tools are sterilized using validated gravity‑displacement steam cycles.

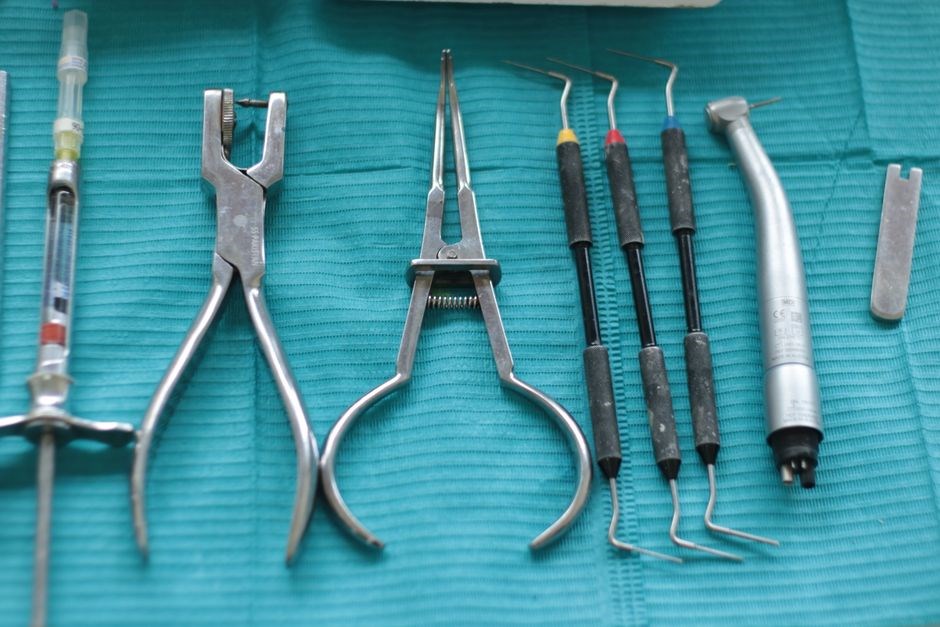

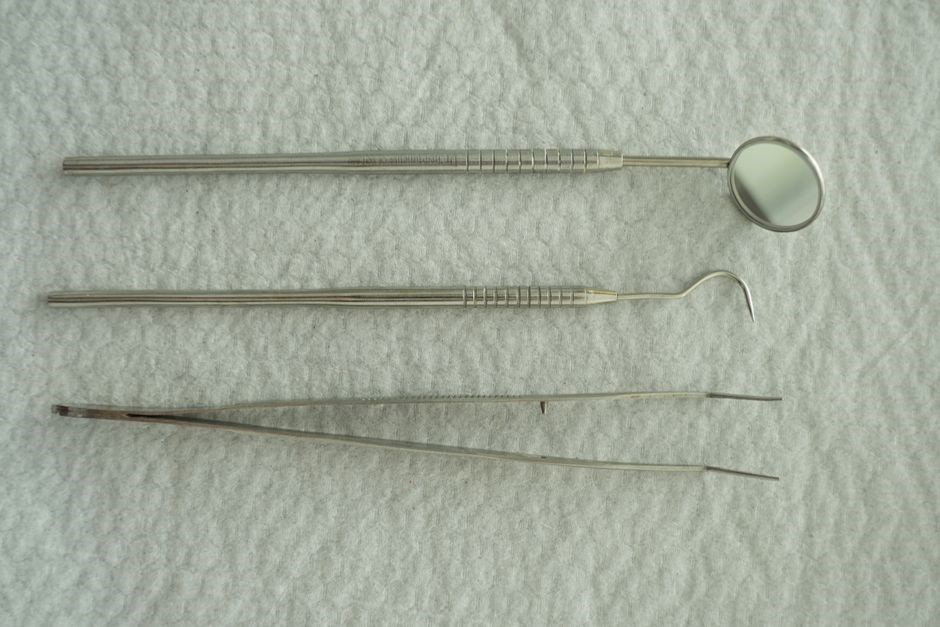

• Dental instrument turnover: handpieces, mirrors, explorers, and impression trays achieve consistent sterility between patients, supporting fast appointment scheduling.
• Veterinary surgical sets: reusable clamps, suturing kits, and diagnostic probes are processed safely, reducing cross‑contamination risk.
• Endoscope and specialty device reprocessing: the M11’s programmable cycles can be tailored to meet manufacturer‑specified parameters for delicate equipment.

By integrating a user‑friendly panel, automatic door lock, and built‑in safety interlocks, the M11 limits steam exposure and guarantees the chamber reaches 250 °F for the set dwell time. Its compact tabletop design fits limited spaces while delivering throughput comparable to larger floor‑standing units. Cycle time: 30 min each.

The Midmark M11 UltraClave is a self‑contained tabletop steam sterilizer engineered for high‑throughput clinical environments. Its chamber volume is 1.5 ft³ (≈42 L), allowing up to 30 standard instrument trays or 12 large cassettes per cycle. The unit achieves a sterilization temperature of 250 °F (121 °C) with a minimum 3‑minute dwell, meeting AAMI ST‑79 requirements. Pressure peaks at 15 psi (≈103 kPa) during the heating phase and is automatically released at the end of the cycle.

Key performance metrics include a typical cycle time of 30 minutes for a standard gravity‑displacement program, 45 minutes for a pre‑vacuum cycle, and 20 minutes for a rapid “express” setting. The M11 draws 115 V, 60 Hz power at a maximum of 2.2 kW and incorporates a dual‑element heating system that cycles on and off to maintain temperature stability within ±2 °F. Water consumption per cycle is approximately 1.2 L, and the integrated condenser recycles condensate to reduce waste.

• Dimensions: 24 in (W) × 30 in (D) × 48 in (H) – fits most tabletop spaces.
• Weight: 180 lb (≈82 kg) for easy relocation with the built‑in caster kit.
• Control interface: 7‑segment LCD with tactile buttons, door‑lock indicator lamp, and audible alarm.
• Safety features: automatic door interlock, over‑temperature shut‑off, and ground‑fault circuit interrupter (GFCI) protection.

–

Installation and Setup

Place the M11 on a level, non‑combustible floor with 115 V, 60 Hz power and a dedicated 2.5 A circuit. Verify water supply, pressure, and drainage. Unpack, inspect for damage, then position the unit, leaving 12 in clearance each side. Ground to earth point per codes.

Site Requirements and Utility Connections

Install the M11 on a level, non‑combustible floor with at least 12 inches of clearance on all sides. The room must be clean, dry and ventilated, maintaining an ambient temperature between 65 °F (18 °C) and 80 °F (27 °C) and relative humidity below 80 % to avoid condensation on internal surfaces.

Provide a dedicated 115 V, 60 Hz single‑phase circuit protected by a 20 A breaker; the unit draws ~2.5 A. Ground the chassis with a green‑yellow wire to an approved earth point. Connect cold‑water supply (½‑inch) with a minimum pressure of 30 psi (2.1 bar) and install a pressure‑reducing valve if pressure exceeds 80 psi. Route the ¼‑inch drain hose to a floor drain or sanitary waste line with a trap to prevent backflow.

Typical installation space is at least 4 ft wide, 6 ft deep, and 7 ft high to accommodate the unit and service access. The surrounding wall should be fire‑rated and the floor surface resistant to moisture. A separate water shut‑off valve located within 6 inches of the inlet simplifies maintenance. Use a stainless‑steel pressure‑rated hose for the supply line and a flexible PVC drain line with a 2‑inch trap. Verify that the water inlet filter is installed and replace it annually. The electrical grounding lug must be torqued to 10 Nm, and the power cord should be secured to prevent strain. Perform a leak test after hookup by running a short cycle with an empty chamber and inspecting all connections Check connections quarterly.

Unpacking, Inspection, and Positioning

When the M11 UltraClave arrives, verify the shipping crate is intact and free of dents. Remove the unit carefully using the built‑in lift points; do not drag it across the floor. Place the autoclave on a level, non‑combustible surface with at least 12 inches of clearance on all sides as recommended in the installation manual. Inspect the exterior for scratches, dents, or missing panels. Check that the door hinges, latch, and safety interlock are present and move freely. Confirm that the power cord, water inlet hose, and drain hose are included and free of cuts.

Open the access panels and compare the serial number plate with the purchase documentation. Verify that the internal chamber is clean, the heating element is free of debris, and the filter housing contains the factory‑installed water filter. Remove any protective film from the control panel and ensure all buttons illuminate correctly. Document any missing accessories such as the door seal, pressure gauge, or tool kit; these items are listed in the quick‑sheet manual.

Position the unit so the rear faces the water supply and the left side provides a clear 24‑inch aisle; Ensure at least 7 ft headroom above the chamber. Level the base with the four adjustable feet, tightening each to achieve a bubble‑level within ±0.5 mm. Secure the unit to the floor with the provided anchor bolts. Verify the water inlet is tightened to 18 Nm and the grounding lug to 10 Nm as indicated in the manual.Check that door gasket is seated before use now today.

Electrical Hookup and Grounding Procedure

Before connecting power, confirm that the installation site meets the voltage and phase requirements listed in the M11 UltraClave specifications (120 V / 240 V, 60 Hz, single‑phase). The unit must be grounded to a dedicated equipment grounding conductor of at least 12 AWG copper. Locate the grounding lug on the rear panel, remove the protective cap, and attach the green‑yellow grounding wire using a torque wrench set to 10 Nm. Tighten the lug securely to prevent loosening during operation.

Connect the power cord to a grounded, three‑pole receptacle that matches the voltage rating of the unit. The plug must be secured with a lock‑type latch to avoid accidental disengagement. Verify that the circuit breaker is rated for a minimum of 20 A and that the branch circuit includes a ground‑fault circuit interrupter (GFCI) if required by local code. After plugging in, turn the main breaker on and allow the control panel to power up.

Perform an initial continuity test with a multimeter: place one probe on the chassis ground lug and the other on a known earth ground point. The reading should be zero ohms. Next, check the voltage at the inlet terminals; it must read within ±5 % of the rated voltage. Record these values in the installation log.

Once verified, press the “Power On” button. The display runs a self‑test; any fault appears as an error code. If the test finishes without error, the unit is ready for water hookup and commissioning. Now…

Operating Procedures

Power the UltraClave, then use the touch panel to select the appropriate sterilization program. Load trays or cassettes, close the door securely, and press Start. The display shows temperature, time. When the cycle ends, the door unlocks and a beep confirms completion.

Control Panel Overview and Button Functions

The M11 UltraClave’s front panel combines a clear LCD read‑out with tactile buttons and status lamps. Temperature, pressure and remaining time are shown continuously, while icons indicate door lock, heating element activity and alarm conditions.

• Program – Select Standard, Fast, Liquid or Custom cycles; the chosen program appears on the display.
• Start – Begins the cycle once the door is locked; a green lamp confirms run mode.
• Stop – Halts the cycle and releases pressure; a red lamp flashes.
• Door Lamp – Illuminates when the door is locked and safe to open, warning of hot steam.
• Heating Indicator – Blinks while the element is energized during sterilization and drying.
• Alarm – Beep and flashing amber icon alert to low water, temperature deviation or other faults.

The control panel is ergonomically positioned at eye level, with raised buttons that provide tactile feedback even when wearing gloves. A back‑light ensures visibility in low‑light environments. The LCD also displays error codes with brief descriptions, allowing quick identification of faults without consulting the manual.

Buttons include a 2‑second debounce to avoid accidental presses. The panel locks out Start until the safety interlock confirms a closed door, meeting OSHA and IEC 60601‑1 requirements. All controls are set now

Loading Instruments, Trays, and Cassettes

Before loading, confirm the door lamp is off, the chamber is cool, and the water reservoir meets the minimum level. Only use Midmark‑approved stainless‑steel trays or polymer cassettes that are free of dents, rust, or residue.

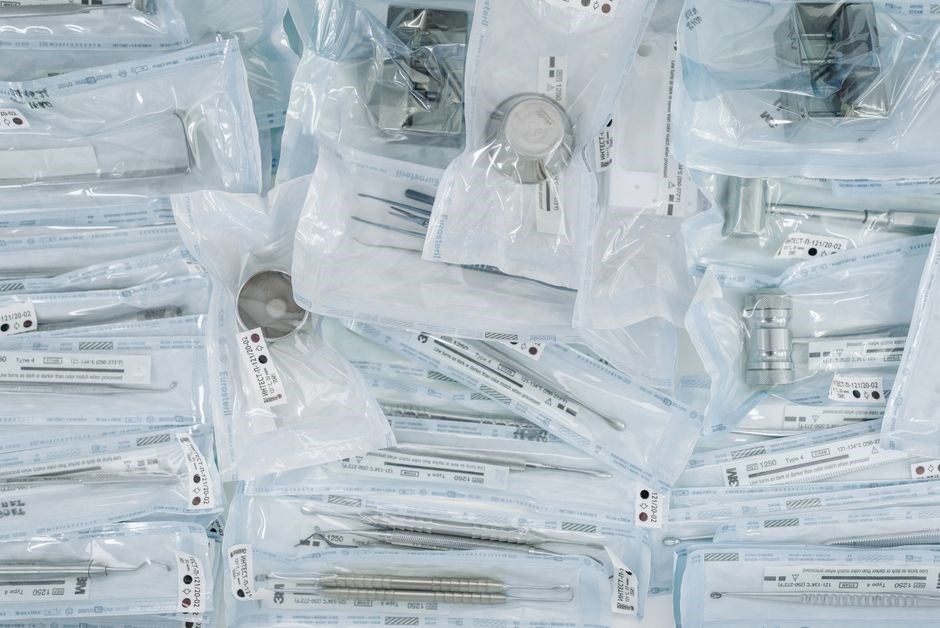

Place wrapped instruments on the tray with the wrapped side up; arrange unwrapped items so steam can circulate around every piece. Do not stack trays. Each tray should rest on the floor or on the built‑in rack supports, leaving at least 2 cm clearance from the walls.

Insert cassettes into the designated slots until the latch clicks. Close the door gently; the interlock will illuminate the door lamp, indicating a safe lock. If the door does not lock, reposition the load and try again.

Select the appropriate cycle on the control panel. The M11 automatically adjusts temperature, pressure and drying time for wrapped, unwrapped, or liquid loads.

During the cycle the inner surfaces become hot. Never touch trays or cassettes until the door lamp extinguishes and the display reads “Cool‑Down Complete.” Use heat‑resistant gloves when unloading.

Open the door slowly, remove each tray or cassette by the handles, and inspect instruments for moisture or damage before returning them to service.

Perform a final visual check to ensure no instruments block the door latch and that all trays sit flat. Verify the water level stays above the minimum after the cycle, then record the load number and parameters in a log.

Selecting Sterilization Programs and Cycle Settings

The M11 UltraClave control panel presents four factory‑programmed cycles: Unwrapped, Wrapped, Packs, and Liquids. Each cycle is optimized for load types and standards. Press Cycle to scroll; the LED confirms selection. The display shows default temperature, sterilization time, and dry time for the highlighted program.

For Unwrapped instruments, the unit defaults to 132 °C (270 °F) for three minutes with a short dry period. Wrapped and Packs cycles increase exposure to four minutes at 132 °C and extend drying to thirty minutes to ensure moisture evaporation. The Liquids cycle operates at 121 °C (250 °F) for fifteen minutes with zero dry time to prevent boiling over.

Advanced users may access the Service Menu to create custom cycles by adjusting temperature set‑points, hold time, and drying duration. Validate custom cycles with biological indicators before use. Confirm water reservoir level is adequate; insufficient water triggers an abort and error code.

After choosing the program, verify the door lamp is lit, then press Start. The controller ramps the heater, monitors chamber pressure via the transducer, and transitions through conditioning, sterilization, exhaust, and drying phases. Real‑time readouts appear on the LCD. Do not interrupt; opening the door aborts the run and requires a full restart.

Starting, Monitoring, and Completing a Cycle

To begin a sterilization run, close the door firmly until the latch engages and the door‑lamp illuminates. Press the Start button; the display switches to “Conditioning” and the heater begins to raise chamber temperature while the pump evacuates air. The built‑in pressure sensor and temperature probe feed real‑time data to the LCD, showing current pressure (psi), temperature (°C), and elapsed time for each phase.

During the sterilization phase the screen reads “Sterilizing” with a countdown of the hold time selected in the program. If the chamber does not reach the required temperature within the preset ramp time, the unit displays an error code and pauses the cycle. Operators should verify water level and connections before restarting.

After the hold, the system enters the “Exhaust” stage, venting steam through the exhaust valve. The drying cycle follows, indicated by “Drying” and a timer that counts down the dry period. The door‑lamp remains off until the cycle is fully complete, preventing accidental opening of a hot chamber.

When the timer reaches zero, the display changes to “Complete” and the door‑lamp flashes green. At this point the door can be opened safely; the load will be hot but dry. Remove instruments, close the door, and log the cycle number in the maintenance record. The unit automatically returns to standby, ready for the next load. Record the cycle ID, operator name, and deviations for compliance review.

Troubleshooting

When the M11 displays an error code, consult the chart in the manual. Common faults include low water level, door latch failure, and sensor malfunction. Reset the unit, verify connections, and rerun a test cycle.If the code remains, call Midmark support with error number.!

Interpreting Error Codes and Common Faults

The M11 UltraClave displays alphanumeric error codes on the control panel to indicate specific malfunctions. Codes prefixed with “E” denote electronic or sensor failures, like a faulty temperature probe (E1) or pressure transducer (E2) drift. “H” codes relate to heating element faults, including open circuit or triac failure on the Display PC Board per SF-1827. Door errors (“D” codes) cover latch motor timeout, switch misalignment, or “Open Door Lamp” logic faults. Water errors (“W” codes) trigger if the reservoir is low, the fill valve fails, or the low water cutoff sensor activates. Consult manual 003-2707-99 Rev AA3 for the complete code list and corrective actions. Always power cycle first; if code persists, verify wiring and sensor resistance before replacing the Display PC Board or heating element. Safety interlocks prevent operation if the door is not sealed, and the manual warns to keep clear when the door opens to avoid severe steam burns.

• E01-E05: Temperature/Pressure sensor drift or open circuit. Check resistance values.
• H01-H03: Heating element open, short, or SSR failure.
• D01-D03: Door latch motor stall, limit switch fault, seal leak.
• W01-W02: Low water cutoff, fill valve timeout.

Refer to the iFixit repair wiki or rescuebiomed.com for community-sourced flowcharts and disassembly guides. Ensure the unit is depressurized and cooled before servicing internal components to prevent burns from hot surfaces. Record the exact error code, cycle phase, and load type when contacting Midmark technical support for efficient diagnosis. Regular inspection of the door gasket integrity and chamber filters prevents recurring faults. Check the water quality and filter status weekly to minimize sensor errors.

Maintenance and Service

Perform routine cleaning after each cycle by wiping the chamber interior with a mild disinfectant, then rinse and dry. Replace the water filter monthly, inspect door gaskets for wear, schedule quarterly service checks to verify sensor calibration heater integrity now

Routine Cleaning, Disinfection, and Filter Replacement

Routine cleaning, disinfection, and filter replacement are critical daily tasks for the Midmark M11 UltraClave. After each sterilization cycle allow the chamber to cool below 50 °C, then remove visible debris with a lint‑free cloth. Spray a hospital‑grade, non‑corrosive disinfectant on all interior surfaces, . Observe the manufacturer‑specified dwell time of three to five minutes, wipe with a damp cloth, and dry with a clean lint‑free towel. Inspect the silicone door gasket for cracks or deformation; clean it with the same disinfectant if any wear is evident. The water reservoir must be emptied, rinsed with distilled water, and refilled with fresh filtered water before the next load. Clean the inlet screen with a soft brush to prevent scale buildup. The M11 utilizes a replaceable water‑filter cartridge; replace the cartridge every thirty days of operation or when the filter‑life indicator flashes. To replace, power down the unit, open the filter access panel, remove the spent cartridge, insert the new cartridge with the correct orientation, reseal the panel, and reset the filter‑life counter on the control panel. External surfaces, including the housing, control panel, and door handles, should be wiped daily with a low‑pH disinfectant wipe, avoiding abrasive materials that could damage the finish. Document each cleaning, disinfection, and filter change in the maintenance log, recording the date, technician name, and any observations. Consistent adherence to this routine minimizes microbial load, prevents mineral scale, and prolongs the lifespan of critical components, ensuring reliable sterilization performance for the clinical environment. OK
